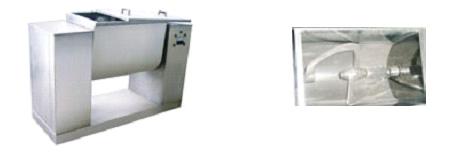

CH系列槽型混合機
概述 Description
用于混合粉狀或濕性物料,使不同比例主輔料混合均勻。本機與物料接觸處均采用不銹鋼制造,漿葉與桶身間隙小,混合無死角,攪拌軸兩端設有密封裝置,能防止物料外瀉,料斗采用按鈕點動控制,出料方便。廣泛適用于制藥、化工、食品等行業。
CH series slot shaped mixer is widely used for mixing powder or wet materials, and can make the materials in different proportions mixed uniformly. The parts of the machine which contact with materials are made of stainless steel. The gap between blades and the inner wall of the cylinder is very small, so there's no"dead corner" in mixing. Seal devices are fixed on both ends of the stirring shaft to prevent the materials from rushing out. Feed hopper is controlled through buttons. So it's very convenient to feed or discharge materials. This type of mixer is widely used in pharmaceutical, chemical, foodstuff industry and so on.
----------------------------------------------------------------------------------------------------------------
技術參數 Technical parameters
型號 Type |
容量 Volume |
電機功率 motor power (kw) |
外形尺寸 |
攪拌轉速 stirring speed (rpm) |
倒料角度 inclined angle (。) |
重量 weight (kg) |
100 |
100 |
2.2 |
1400×580×1000 |
24 |
105 |
400 |
150 |
150 |
3 |
1600×600×1050 |
24 |
105 |
500 |
200 |
200 |
4 |
1870×650×1065 |
24 |
105 |
650 |
